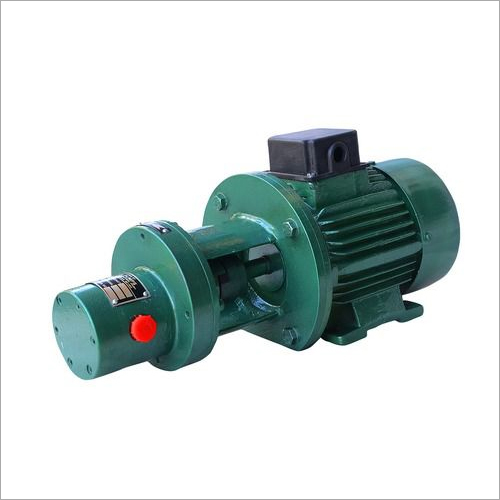

Flanged Type Gear Pump In Cast Iron Construction

Product Details:

Theory Rotary Pump
Product Type External Gear Pump
Flow Rate 60 LPM (max)
Color Metalic Green
Usage Transfer,Circulation,Unloading
Inlet/Outlet 12 NB to 12 NB
Size 1/2
Supply Ability : Per Week
Share Your Product:

10000 INR

Get a Price/Quote

Send Inquiry

Price And Quantity

Price Range 3000.00 - 15000.00 INR
Price 10000 INR
Minimum Order Quantity 1 Unit

Product Specifications

Seals Type PTFE Gland, Mechanical seal
Weight 14 kg to 30 kg Kilograms (kg)
Usage Transfer,Circulation,Unloading
Suction Type Threaded
Head Size 0-25 m
Color Metalic Green
Pressure Medium Pressure
Power Electric
Flow Rate 60 LPM (max)
Size 1/2
Product Type External Gear Pump
Structure Gear Pump
Theory Rotary Pump
Inlet/Outlet 12 NB to 12 NB
Material C I, Cast Steel, SS304, SS316, Monel

Trade Information

Payment Terms Cheque, Cash in Advance (CID)
Supply Ability Per Week
Delivery Time Week
Packaging Details Wooden Packing
Main Domestic Market All India

Product Description

Dhara Pumps offers high quality External Rotary Gear Pumps for high flow & pressure applications. These pumps are commonly used for loading & unloading of viscous liquid, transfer & filteration application.

Other Details:

Pump available from size 1/2" to 1".
Pumps available in C I, Cast Steel, SS304, SS316, Monel
Capacity: 5 lpm to 60 lpm
Sealing : Gland Packing/ Mechanical Seal
Pump Provided with in build relief valve
Useful for low to high viscocity liquid transfer
High Temperature: can be used for pumping hot liquid upto 1800 C

STANDARD SPECIFICATION FOR "DHARA PUMPS" FLANGED MOUNTED GEAR PUMPS

Technical Specifications

No	Pump Model	MAXIMUM CAPACITY IN LPM AT 0 PSI	NOZEL SIZE		RPM	PRESSURE Vs. H.P. TABLE (PRESSURE IN PSI)
SUCTION	DELIVERY	50	100	250	500
1	DP 15	20	1/2”	1/2”	1440	0.5	1.0	1.5	2
2	DP 20	25	3/4”	3/4”	1440	1	1.5	2	3
3	DP 30	35	1”	1”	1440	1.5	2	3	5
4	DP 40	45	1”	1”	1440	1.5	2	3	5
5	DP 50	60	1”	1”	1440	1.5	2	3	5
