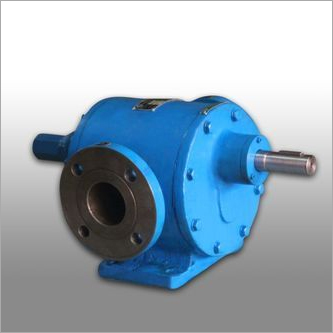

External Gear Pump 2 1/2"

External Gear Pump 2 1/2
External Gear Pump 2 1/2"
Send Inquiry
Product Code : DP 350
Brand Name : Dhara Pumps
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
Product Specifications
  • Theory
  • Rotary Pump
  • Material
  • C I, Cast Steel, SS304, SS316, Monel
  • Structure
  • Gear Pump
  • Power
  • Electric Watt (w)
  • Usage
  • Other, Cosmetics, Boat, Automobile, Food, Oil Well
Product Description
 Dhara Pumps offers high quality External Rotary Gear Pumps for high flow & pressure applications. These pumps are commonly used for loading & unloading of viscous liquid, transfer & filteration application.

Other Details:
  • Pump available from size 1 1/2" to 6".
  • Pumps available in C I, Cast Steel, SS304, SS316, Monel
  • Capacity: 120 lpm to 2300 lpm
  • Sealing : Gland Packing/ Mechanical Seal
  • Pump Provided with inbuild relief valve
  • Useful for low to high viscocity liquid transfer
  • High Temperature: can be used for pumping hot liquid upto 180C.
Technical Specification:
No Pump Model MAXIMUM CAPACITY IN LPM AT 0 PSI NOZEL SIZE RPM PRESURE Vs. H.P. TABLE (PRESURE IN PSI)
SUCTION DELIVERY 50 100 250 500
1 DP 100 120 1½" 1½" 1440 2.0 3.0 5.0 10.0
2 DP 200 235 2" 2" 1440 3.0 5.0 12.5 25.0
3 DP 350 375 2½" 2½" 1440 5.0 10.0 25.0 -
4 DP 500 550 3" 3" 1440 7.5 15.0 30.0 -
5 DP 700 750 3" 3" 1440 12.5 20.0 50.0 -
6 DP 1000 1100 4" 4" 960 15.5 30.0 - -
7 DP 1500 1600 4" 4" 960 25.3 60.0 - -
8 DP 2000 2100 6" 6" 960 30.5 75.0 - -

Trade Information
  • Payment Terms
  • Cheque, Cash in Advance (CID), Cash Advance (CA), Cash on Delivery (COD)
  • Supply Ability
  • 10 units Per Month
  • Main Domestic Market
  • All India
