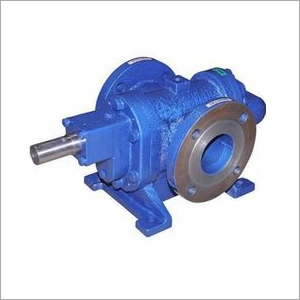

Double Helical Gear Pump

Double Helical Gear Pump

Product Details:

  • Flow Rate 375-2100 LPM
  • Theory Rotary Pump
  • Product Type External Gear Pump
  • Color Metalic Blue & Green
  • Size 2 1/2
  • Usage Transfer, Circulation, Unloading
  • Material C I, Cast Steel, SS304, SS316, Monel
  • Supply Ability : 10 Unit Per Month
17500 INR
X

Price And Quantity

  • 17500 INR
  • 3000.00 - 15000.00 INR
  • 1 Unit

Product Specifications

  • Rotary Pump
  • Viton Oil seal or mechanical
  • 375-2100 LPM
  • Maritime
  • C I, Cast Steel, SS304, SS316, Monel
  • 2 1/2
  • Transfer, Circulation, Unloading
  • Electric
  • Medium Pressure
  • Metalic Blue & Green
  • External Gear Pump

Trade Information

  • Cash in Advance (CID), Cheque
  • 10 Unit Per Month
  • Wooden Box
  • Africa, Middle East, Australia, Asia
  • All India

Product Description

Dhara Pumps offers high quality External Rotary Gear Pumps for high flow & pressure applications. These pumps are commonly used for loading & unloading of viscous liquid, transfer & filteration application. This pumps have silent operation because the axial thrust on the pump shaft is cancelled because of the twin helical gears.

Other Details:
  • Pump available from size 2 1/2" to 6".
  • Pumps available in C I, Cast Steel, SS304, SS316, Monel
  • Capacity: 375 lpm to 2100 lpm
  • Sealing : Gland Packing/ Mechanical Seal
  • Pump Provided with inbuild relief valve
  • Useful for low to high viscocity liquid transfer
  • High Temperature: can be used for pumping hot liquid upto 180C.

No

Pump Model

MAXIMUM CAPACITY IN LPM AT 0 PSI

NOZEL SIZE

RPM

PRESURE Vs. H.P. TABLE (PRESURE IN PSI)

SUCTION

DELIVERY

50

100

250

500




1

DP 350

375

2

2

1440

5.0

10.0

25.0

2

DP 500

550

3"

3"

1440

7.5

15.0

30.0

3

DP 700

750

3"

3"

1440

12.5

20.0

50.0

4

DP 1000

1100

4"

4"

960

15.5

30.0

-

5

DP 1500

1600

4"

4"

960

25.3

60.0

-

6

DP 2000

2100

6"

6"

960

30.5

75.0

-


Dhara Pumps
